TriCache — Deep Architecture & Systems Internals ​

Systems Engineering Reference: Mathematical formulations, low-latency algorithms, hardware-aware optimizations, and cryptographic wire specifications.


1. Native Window TinyLFU (W-TinyLFU) Admission Engine ​

TriCache includes a native implementation of the state-of-the-art Window TinyLFU cache architecture popularized by Java's Caffeine:

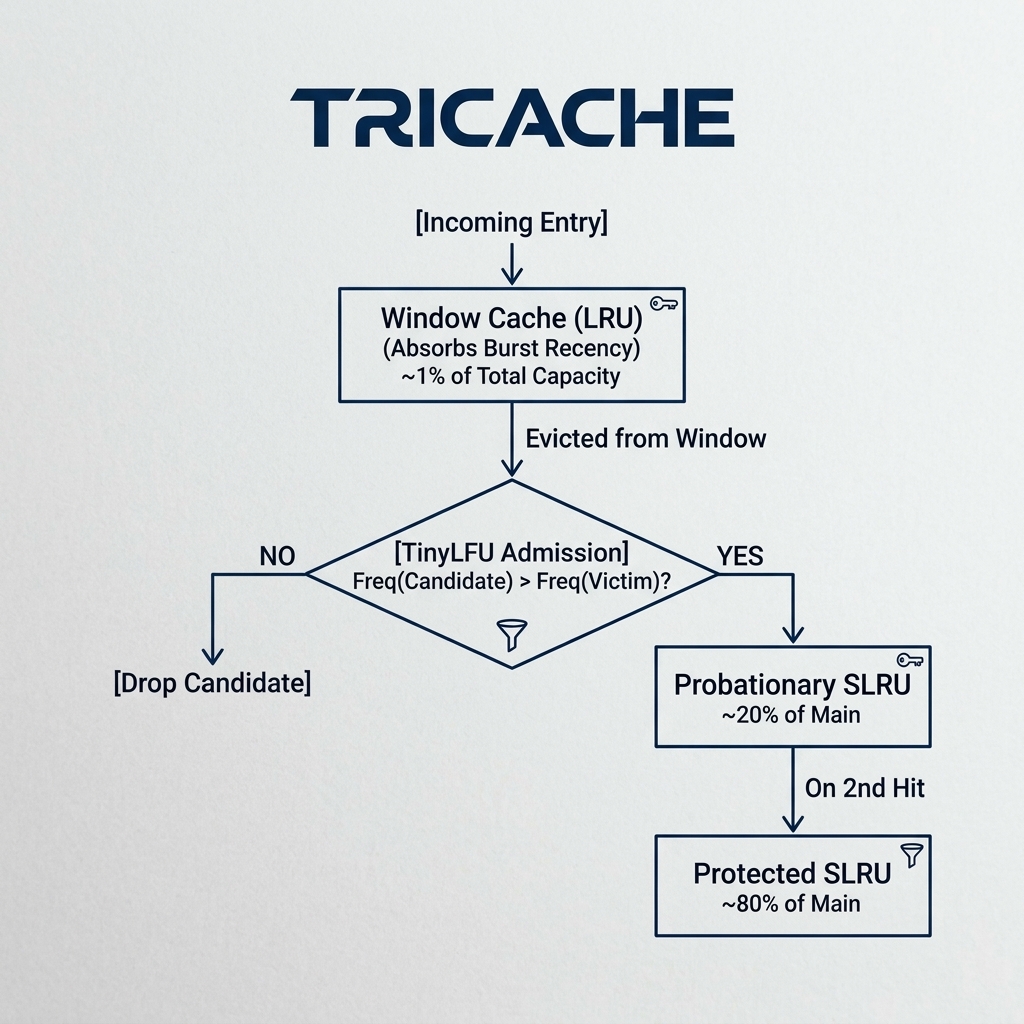

Native Window TinyLFU Admission Policy

Text Specification & ASCII Flow
                           [Incoming Entry]
                                  │
                                  ▼
                    ┌───────────────────────────┐
                    │    Window Cache (LRU)     │  ~1% of Total Capacity
                    │  (Absorbs Burst Recency)  │
                    └─────────────┬─────────────┘
                                  │ Evicted from Window
                                  ▼
                         [TinyLFU Admission]
                      Freq(Candidate) > Freq(Victim)?
                                  │
                  ┌───────────────┴───────────────┐
                  │ YES                           │ NO
                  ▼                               ▼
       ┌──────────────────────┐             [Drop Candidate]
       │  Probationary SLRU   │  ~20% of Main
       └──────────┬───────────┘
                  │ On 2nd Hit
                  ▼
       ┌──────────────────────┐
       │    Protected SLRU    │  ~80% of Main
       └──────────────────────┘

Architectural Properties: ​

  1. Burst Recency Absorption: Short-lived temporal spikes hit in the Window LRU (~1% capacity) without displacing long-resident items in the main cache.
  2. Frequency-Biased Admission: When the Window overflows, its victim competes against the Probationary SLRU victim in a 4-row Count-Min Sketch. The entry with the higher historical frequency is admitted.
  3. Mathematical Scan Resistance: Large sequential scans (e.g. table dumps or database crawls) are immediately dropped by the TinyLFU admission gate with >90% rejection rates, maintaining 100% hit retention for resident hot items.

2. Count-Min Sketch (CMS) Frequency Estimation ​

To remember entry access frequencies across eviction boundaries, TriCache uses a space-efficient Count-Min Sketch:

  • Dimensions: 4 rows × 512 columns (Uint16Array), requiring exactly 4 KB of RAM (fits entirely within CPU L1d cache).
  • Hashing: 4 independent bit-mixes derived from a single 32-bit FNV-1a digest.
  • Periodic Halving Decay: When total insertions cross SKETCH_DECAY_THRESHOLD (100,000), all counters are bit-shifted right (>>= 1), aging out old bursts and preventing stale keys from holding high frequency indefinitely.
frequency-estimate.tsfrequency-estimate.tstypescript
// Minimum-across-rows frequency estimate in ~300ns
estimate(key: string): number {
  const h  = this.fnv32(key);
  const h1 = (h  ^ (h  >>> 16)) >>> 0;
  const h2 = (Math.imul(h1, 0x45d9f3b)  ^ (h1 >>> 16)) >>> 0;
  const h3 = (Math.imul(h2, 0x7fb9b7a1) ^ (h2 >>> 16)) >>> 0;
  const h4 = (Math.imul(h3, 0x1b873593) ^ (h3 >>> 16)) >>> 0;
  const t  = this.table;
  return Math.min(
    t[h1 & SKETCH_MASK],
    t[SKETCH_WIDTH     + (h2 & SKETCH_MASK)],
    t[2 * SKETCH_WIDTH + (h3 & SKETCH_MASK)],
    t[3 * SKETCH_WIDTH + (h4 & SKETCH_MASK)],
  );
}

3. WebAssembly & Murmur3 Bloom Filters ​

TriCache defends against negative query penetration (e.g. 404 routes, bot crawlers) by placing a Bloom filter directly in front of the in-memory Map:

  • Guaranteed Miss Detection: mightContain(key) === false guarantees the key is absent, skipping Map lookups entirely in ~140 nanoseconds.
  • Inlined 562-Byte WebAssembly Binary: Compiled without filesystem dependencies; decoded synchronously into WebAssembly instances.
  • Dynamic JS Fallback: When L1 entry ceiling exceeds the 10,400-entry capacity of the 100K-bit filter, TriCache automatically provisions an optimally sized pure-JS filter:m=⌈−n⋅ln⁡(p)(ln⁡2)2⌉,k=round(mn⋅ln⁡2)
  • MurmurHash3 Kirsch-Mitzenmacher: Edge isolates use a double-hashing filter (hi(x)=h1(x)+i⋅h2(x)(modm)) eliminating bit clustering.

4. Hardware-Aware V8 Optimizations & Memory Hygiene ​

A. Zero-Allocation Hot Paths (Pre-allocated Pools) ​

During cache eviction, candidate sampling avoids creating temporary object literals. TriCache pre-allocates an eviction candidate pool (_evictPool) of 16 slots at construction and mutates their properties in-place, eliminating GC allocations during sustained write pressure.

B. 32-Bit Register-Level CPU XOR Loops ​

The XOR cipher engine detects 4-byte buffer alignment. When aligned, it compiles the operation using Uint32Array views, allowing the V8 JIT compiler to execute 32-bit register-level XOR CPU instructions rather than byte-by-byte traversal:

xor-word-path.tsxor-word-path.tstypescript
// 32-bit word-level fast path (4 bytes per iteration)
const u32Data = new Uint32Array(buf.buffer, buf.byteOffset, words);
const u32Key  = new Uint32Array(keyBuf.buffer, keyBuf.byteOffset, keyWords);
for (let i = 0; i < words; i++) {
  u32Data[i] ^= u32Key[i % keyWords];
}

C. msgpackr 2.1.0 Record Compression & DoS Defense ​

  • Record Structure Compression (useRecords: true): Replaces repeated JSON keys with compact binary type IDs, reducing serialized footprints by ~45%.
  • DoS Memory Amplification Defense: Rejects malformed array32 or map32 headers declaring lengths beyond buffer boundaries, eliminating 32,000,000× allocation amplification attacks.

5. Wire Envelopes & Cryptographic Storage ​

All entries written to Redis (L2) and the disk tier (L1.5) use self-describing magic prefixes:

Prefix / Magic HeaderModeDescription
enc:v1:<base64>AES-256-GCMAuthenticated 32-byte AEAD envelope with 12-byte IV and 16-byte MAC tag
a128:v1:<base64>AES-128-GCMAuthenticated 16-byte AEAD envelope (~15% faster on non-AES-NI hardware)
ctr:v1:<base64>AES-128-CTRUnauthenticated stream cipher (fastest, requires transport-level integrity)
cmp:v1:<data>CompressedBrotli or Gzip compressed payload
ecp:v1:<data>Encrypted + CompressedCompressed before encryption
TRIC1ENC|...Disk Tier V2/V3Binary disk envelope with CRC validation and owner-only (0o600) permissions

6. Zero-Dependency AWS SigV4 Snapshot Signer ​

For stateless Kubernetes pods and Edge workers, TriCache implements a native AWS SigV4 Request Signer built entirely on Web Crypto (crypto.subtle) and fetch:

  • Zero SDK Overhead: Eliminates the 30MB @aws-sdk/client-s3 dependency.
  • HMAC Key Derivation:kDate=HMAC("AWS4"+SecretKey,DateStamp)kRegion=HMAC(kDate,Region)kService=HMAC(kRegion,"s3")kSigning=HMAC(kService,"aws4_request")
  • Storage Compatibility: Fully tested with AWS S3, Cloudflare R2, MinIO, and Google Cloud Storage S3-compatible endpoints.

7. Zero-Downtime Key Rotation & Ciphers ​

TriCache supports at-rest cryptographic isolation across Redis and disk tiers with live zero-downtime key rotation:

typescript
// 1. Initial configuration with primary key and previous key fallback
const cache = CacheService.create({
  encryptionKey: process.env.NEW_KEY,
  previousEncryptionKey: process.env.OLD_KEY,
  strictKeyValidation: true, // Throws if key length is invalid (fail-closed)
});

// 2. Or trigger live rotation on active instances without restarts:
await cache.rotateEncryptionKey(newKeyBase64, 'aes-256-gcm');

Supported Cryptographic Modes: ​

  • aes-256-gcm (Default): 32-byte key. Authenticated AEAD encryption with 12-byte IV and 16-byte authentication tag.
  • aes-128-gcm: 16-byte key. ~15% faster on architectures without dedicated AES-NI acceleration.
  • aes-128-ctr: 16-byte key. High-throughput stream cipher without MAC calculation (use when transport layer guarantees integrity).
  • xor: 32-bit register-level obfuscation. Intended exclusively for development or non-sensitive data isolation.

8. Worker Thread Offloading & Event-Loop Preservation ​

Under high write concurrency, encrypting or compressing multi-megabyte payloads on the main JavaScript thread can cause V8 event-loop stalls, degrading HTTP API latency:

typescript
const cache = CacheService.create({
  workerThreads: true,
  workerThresholdBytes: 131072, // 128 KB
  workerPoolSize: 4,            // Dedicates worker pool to crypto/compression
});
  • Threshold Delegation: Payloads smaller than workerThresholdBytes are processed synchronously to avoid IPC messaging overhead.
  • Offloaded Heavy Loads: Large payloads are transferred as ArrayBuffer instances to worker threads, executed off-heap, and returned with 0ms event-loop lag.

9. Read Safety: cloneStrategy: 'structuredClone' vs 'none' ​

JavaScript in-memory caches that return direct object references are vulnerable to reference pollution: if application code mutates a returned object (e.g. user.roles.push('admin')), the cached entry in L1 is silently corrupted.

TriCache provides two explicit operational strategies:

typescript
const cache = CacheService.create({
  cloneStrategy: 'structuredClone', // or 'none'
  frozen: process.env.NODE_ENV !== 'production', // Dev-mode deep freeze
});
  • cloneStrategy: 'none' (Default): Returns live in-memory references. Achieves maximum throughput (2.81M ops/s / 356 ns). Ideal for immutable domain data, primitive values, and React Server Component stream buffers.
  • cloneStrategy: 'structuredClone': Deep-clones objects using native V8 structuredClone() on L1 hits and L2 promotions. Guarantees 100% reference immutability at the cost of ~1.2µs per clone.
  • frozen: true: When enabled in development, recursively freezes returned objects with Object.freeze(), immediately throwing a TypeError if caller code attempts to mutate cached references.

10. Autonomous Adaptive TTL & XFetch Early Expiration ​

Setting static cache TTLs across hundreds of database queries often leads to either over-caching stale data or under-caching slow queries:

typescript
const cache = CacheService.create({
  adaptiveTtl: true,
  adaptiveTtlMultiplier: 20, // p95Ms * 20 = adapted TTL
  adaptiveTtlMin: 10,        // 10s floor
  adaptiveTtlMax: 86400,     // 24h ceiling
});
  • p95 Latency Ring Buffers: TriCache maintains a 32-sample rolling ring buffer per key. Queries that take 2,000ms to compute are autonomously cached longer (e.g. 40s), while fast 2ms queries receive shorter TTLs.
  • XFetch Probabilistic Early Expiration: Prevents cache stampedes by recomputing entries ahead of time with increasing probability as expiration approaches:Δ⋅β⋅ln⁡(rand())<t−texpiry

11. Dual-Constrained Autonomous L1 Memory Sizing ​

When running in containerized environments (Kubernetes, AWS ECS, GCP Cloud Run), sizing L1 cache based solely on cgroup limits can trigger V8 heap OOM crashes if --max-old-space-size is smaller than container memory.

TriCache implements a dual-constrained sizing formula combining Linux cgroup v1/v2 limit detection with V8 runtime statistics:

Target L1=max(16 MB,min(cgroupLimit×0.40,v8HeapLimit×0.50,512 MB))

Key Invariants: ​

  • Distroless Permission Trap Defense: Wrapped inside safe try/catch defaulting to Infinity on EACCES or missing files in hardened non-root containers.
  • Heap Headroom Protection: Caps L1 at 50% of v8.getHeapStatistics().heap_size_limit, preventing garbage collection thrashing.
  • Container Headroom Protection: Caps L1 at 40% of cgroup capacity to leave ample room for OS page cache, native threads, and network buffers.

12. Zero-Latency Microtask Redis Auto-Pipelining ​

Traditional auto-batchers use timer intervals (setTimeout(flush, 1)) which introduce artificial latency penalties to high-throughput services.

TriCache implements zero-latency microtask pipelining via queueMicrotask:

typescript
const cache = CacheService.create({
  autoPipeline: true,
  maxPipelineBatchSize: 100, // Immediate flush threshold
});
  • Tick Boundary Coalescing: All concurrent operations initiated in the same synchronous JavaScript turn are batched into a single Redis pipeline call before I/O returns to the libuv poll phase.
  • Zero Timer Delay: Microtasks fire immediately after synchronous execution, incurring 0.00ms artificial delay.
  • High-Load Flushes: If the queue fills to maxPipelineBatchSize before the tick ends, it flushes immediately.

13. Priority-Aware Partitioned Disk Tiering ​

To protect high-value entries from being evicted by high-volume transient data, TriCache uses priority-partitioned SQLite storage:

typescript
// Critical entry protected from early eviction
await cache.set('auth:master-token', token, 86400, CachePriority.CRITICAL);

// Low-priority scraping query subject to aggressive pruning
await cache.set('feed:rss', feed, 300, CachePriority.LOW);
  • Composite Index: Backed by CREATE INDEX IF NOT EXISTS idx_priority_access ON meta (priority ASC, last_accessed_at ASC);
  • Watermark Pruning: When disk usage exceeds high watermarks, TriCache evicts LOW and NORMAL entries first based on LRU access time, preserving HIGH and CRITICAL entries.

14. Asymmetric Key Envelope Encryption (TRICENV1) ​

For zero-trust multi-cloud deployments and compliance with SOC2/PCI-DSS, TriCache provides asymmetric envelope encryption (EnvelopeEncryption) for cold-start and remote snapshots:

typescript
import { EnvelopeEncryption } from 'tricache';

const encrypted = await EnvelopeEncryption.encrypt(snapshotBuffer, { publicKey: rsaPublicKeyPem });
const restored = await EnvelopeEncryption.decrypt(encrypted, { privateKey: rsaPrivateKeyPem });

Binary Header Specification (TRICENV1): ​

┌──────────────┬──────────────┬──────────────────┬──────────────┬──────────────┬──────────────┐
│ Magic Header │ Key Len (BE) │ Encrypted DEK    │ GCM IV       │ Auth Tag     │ Ciphertext   │
│ 8 bytes      │ 4 bytes (u32)│ Variable length  │ 12 bytes     │ 16 bytes     │ N bytes      │
│ "TRICENV1"   │ e.g. 256/512 │ (RSA-OAEP 256)   │ (random)     │ (AES-GCM)    │ (Payload)    │
└──────────────┴──────────────┴──────────────────┴──────────────┴──────────────┴──────────────┘
  • Tamper Rejection: Any alteration to the header, IV, tag, or encrypted DEK fails authentication before memory allocation.
  • KMS Extensibility: Supports kmsEncrypt and kmsDecrypt hooks for direct integration with AWS KMS, Google Cloud KMS, or HashiCorp Vault.

15. Differential Multi-Tier Waterfall Resolution (cache.mget) ​

Most caching systems implement batch lookups as naive loops over single-key get() calls, or limit batching to a single remote tier (MGET in Redis). TriCache implements a differential waterfall resolution engine that cascades through heterogeneous local and remote tiers, querying downstream tiers and origin databases only for the differential remainder of unresolved keys.

                   keys: [k1, k2, k3, k4, k5]
                               │
            ┌──────────────────▼──────────────────┐
            │   Tier 1: In-Memory L1 Scan (RAM)   │ ── Warm hits (0 I/O) ──> [k1]
            └──────────────────┬──────────────────┘
                               │ Misses: [k2, k3, k4, k5]
            ┌──────────────────▼──────────────────┐
            │  Tier 2: Redis Pipelined MULTI/GET  │ ── Remote hits ────────> [k2, k4]
            │     (Single Network Round-Trip)     │    (Promoted to L1)
            └──────────────────┬──────────────────┘
                               │ Misses: [k3, k5]
            ┌──────────────────▼──────────────────┐
            │ Tier 1.5: Off-Heap /dev/shm & NVMe  │ ── Disk spill hits ────> [k3]
            │   (Tombstone & Canary Protected)    │    (Promoted to L1)
            └──────────────────┬──────────────────┘
                               │ Misses: [k5]
            ┌──────────────────▼──────────────────┐
            │   Tier 3: fetchFn(missKeys) Origin  │ ── Origin hit ─────────> [k5]
            │   (Only True Remainder Passed to DB)│    (Backfilled to L1/L2)
            └──────────────────┬──────────────────┘
                               │
            ┌──────────────────▼──────────────────┐
            │   Deterministic Ordered Results     │
            │      [val1, val2, val3, val4, val5] │
            └─────────────────────────────────────┘

Cascading Execution Lifecycle: ​

  1. Zero-Overhead L1 Scan: Keys are evaluated against resident V8 memory in a single synchronous pass. Warm hits return references directly, bypassing string serialization and network I/O.
  2. Pipelined L2 Batching: Any keys missing from L1 are batched into a single Redis client.multi().get(...) pipeline. Hits are decrypted, deserialized, promoted into L1 with jittered TTL, and recorded to the latency watchdog.
  3. Off-Heap Disk Spill (Tier 1.5): For remaining unfulfilled keys, TriCache checks SQLite /dev/shm or NVMe storage. To prevent resurrection races, this lookup is guarded by:
    • Synchronous delete tombstones (_pendingDiskDeletes)
    • Wildcard pattern tombstones (_patternTombstones)
    • Hardware canary latency checks via the LatencyWatchdog
  4. Selective Origin Batch Execution (fetchFn): Origin systems (PostgreSQL, Aurora, REST APIs) are invoked only with the true remainder (missKeys). For example, in a batch of 50 keys where 45 are warm across L1/L2, fetchFn receives an array of exactly 5 keys.
    • fetchFn may return either a Record<string, T> or a Map<string, T>.
  5. Deterministic Order & Concurrent Backfill: The returned array (T | undefined)[] strictly preserves the original index ordering (result[i] corresponds to keys[i]). Newly fetched values are concurrently backfilled across tiers using Promise.all with optional dynamic per-key TTLs (key: string) => number.
